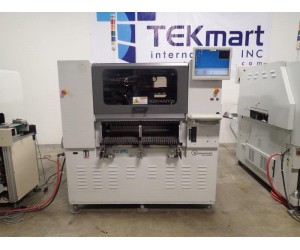

TK1021 - Universal Advantis AC-30L Placement Machine (2006)
Generate PDFBrand: Universal
Product Code: Advantis AC-30L Placement Machine
Availability: In Stock
Ex Tax: $0.00
Universal Advantis AC-30L (4983A) Placement Machine (2006)
Brand: Universal Instruments Corporation (UIC)
Model: Advantis AC-30 L 4983A
Product Code: 4983A
Year: 2006
Product Tree #: 50419802
Machine Specifications:
Operational Software: Microsoft Windows 2000 5.00 Service Pack 4
Software Type Machine Version: UPS+ 6.8.0.4
Fiducial Camera Type: Frame RS170 1.0 per pixel
Component Camera Types: Head 1 Firewire 1394A 0.8 per pixel & FirewireA 2.9 per pixel
Beams/Gantries: 1
Head Type: 30-spindle Lightning Head
Nozzle Changer Inventory: 140
PCB Flow: Left to Right
Placement Rate: 33,600 MAX CPH
X, Y Motor Type: Screw Ball
Conveyor Type: Single Conveyor
Rail Width Control Type: Automatic
PVS Bar Coding: Yes (Optional)
Voltage: 200-240VAC Nominal
Pressure: 90 Psi
Frequency: 50-60Hz
Full Load Current: 30 Amps
Performance
Max CPH: 33,600
CPH/m^2: 15,170
1608 CPH – Single Lane board Handling: 21,000
Component Capabilities
Min Component: 0603mm (0201”)
Max Component Height: 6mm
Min Component Pitch: 0.1mm (0.004”)
Min Ball Dia.: 109um
Placement Force(grams): 200 ± 20%
Special Vac Nozzle (Oddform): No
Gripper Nozzle (Oddform): No
Board Handling
Max Board Size (L x W) (mm): 508 x 457
Load Time(s) - Standard: 3
Optional (L x W) (mm): 635 x 457
Load Time(s) - Optional: 6
Dual Lane Option: No
Feeder Capacity
8mm Input: 136
12mm Input: 68
16mm Input: 34
Bank Change: Yes
Splicing: Yes
Machine Dimensions:
Length x Depth (meters): 1.67 x 2.25
