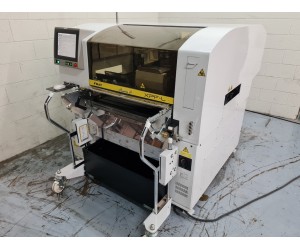

Fuji XPF-L High Speed Multi Purpose Mounter (2011)
Year: Sep 2011
Serial Number: SD0071304
Excellent condition, <12,000 operating hrs!

Live or virtual demo available upon request.

Auto-Tool Station
S1-1: Single nozzle S018 (1.80 mm)
S1-2: Single nozzle S025 (2.50 mm)
S1-3: Backup pin setter tool
S1-4: Single nozzle S037 (3.70 mm)
S1-5: Single nozzle S100 (10.00 mm)
R1: Revolver Auto-Tool (RE0027 402097)
    Nozzle 1: M007 (0.70 mm)
    Nozzle 2: M007 (0.70 mm)
    Nozzle 3: M007 (0.70 mm)
    Nozzle 4: M007 (0.70 mm)
    Nozzle 5: M007 (0.70 mm)
    Nozzle 6: M007 (0.70 mm)
    Nozzle 7: M007 (0.70 mm)
    Nozzle 8: M007 (0.70 mm)
    Nozzle 9: M007 (0.70 mm)
    Nozzle 10: M007 (0.70 mm)
    Nozzle 11: M007 (0.70 mm)
    Nozzle 12: M007 (0.70 mm)
R2: Revolver Auto-Tool (RE0027 401783)
    Nozzle 1: M010 (1.00 mm)
    Nozzle 2: M010 (1.00 mm)
    Nozzle 3: M010 (1.00 mm)
    Nozzle 4: M010 (1.00 mm)
    Nozzle 5: M010 (1.00 mm)
    Nozzle 6: M010 (1.00 mm)
    Nozzle 7: M010 (1.00 mm)
    Nozzle 8: M010 (1.00 mm)
    Nozzle 9: M010 (1.00 mm)
    Nozzle 10: M010 (1.00 mm)
    Nozzle 11: M010 (1.00 mm)
    Nozzle 12: M010 (1.00 mm)
R3: Empty
Tray Removal Tool: NO

Parts Supply Units
Front: MFU-40
    (64) W8 slots
Rear: MFU-40
    (64) W8 slots

Board Handling
Max Board Dims: 457mm (L) x 356mm (W)
