TK1233 - MPM Momentum+ Screen Printer (2011)
Ex Tax: $0.00

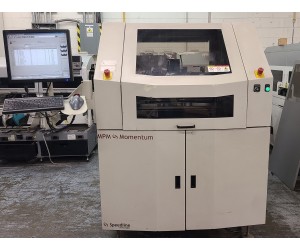

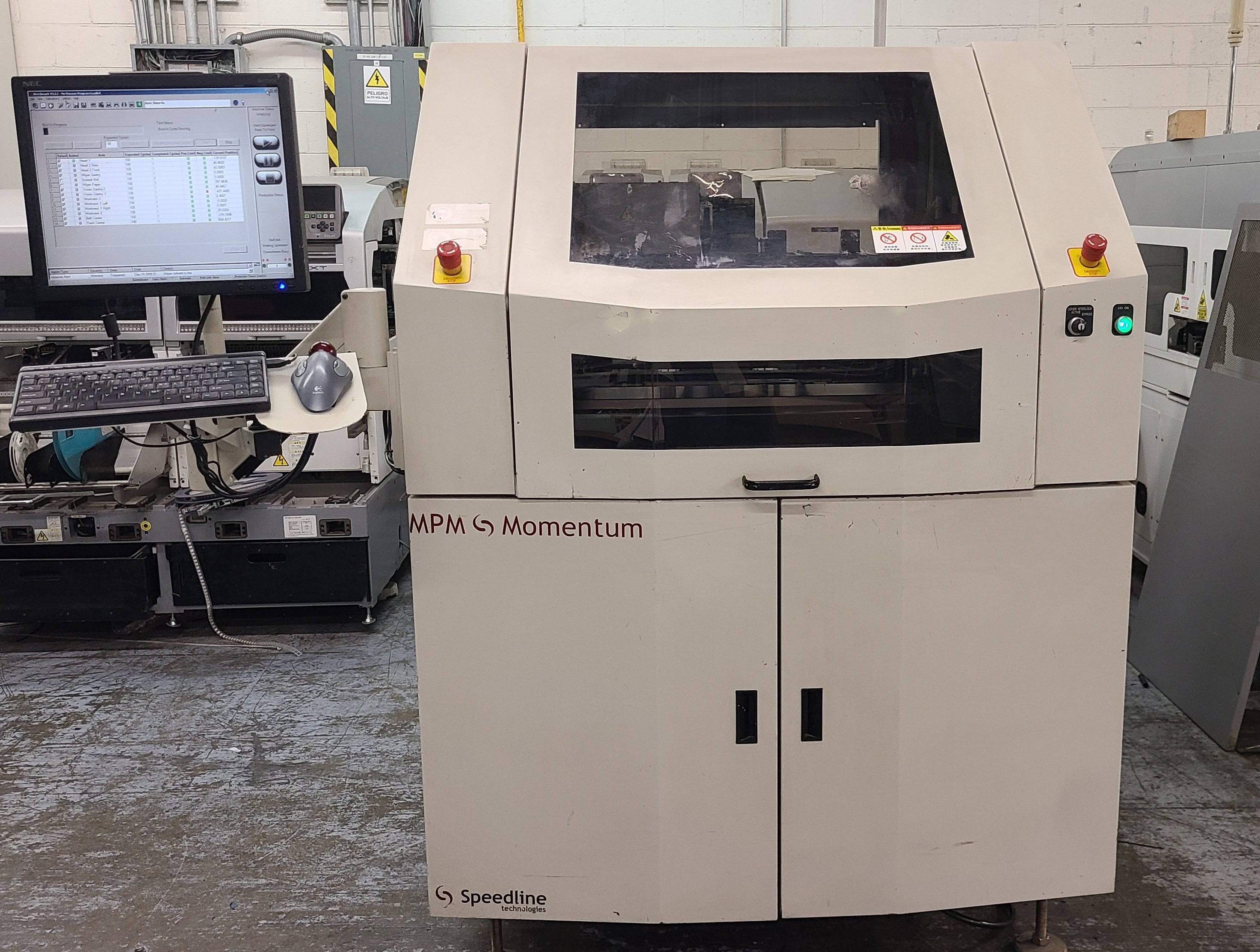

MPM Momentum+ Screen Printer (2011)
Brand: Speedline Technologies
Model: Momentum+
Year: 2011
SN: M201281
Cycle Count: 483,814
Software Version: Benchmark V3.2.1, OS: Windows XP
Board Handling:
Max Board Size (X, Y): 609.6mm x 508mm (24" x 20")
Min Board Size (X, Y): 50.8 x 50.8 mm (2" x 2")
Board Thickness: 0.2mm to 5.0mm
Max Board Weight: 4.5 kg (9.92 lbs)
Board Edge Clearance: 3mm
Conveyor Load Direction: Left to Right
Conveyor Fixed Rail: Front
Single Lane
Edge Loc, Board Clamping, Front pin hardstop only
Print Parameters:
Print Speed: up to 305mm/sec
Print Force: 0 to 20 kg
Stencil Frame Size: 737 x 737mm (29" x 29")
Vision:
Camera System: Single Digital Camera with up/down looking vision
Installed Options:
Head Y Ball Screw
Open Loop, Dual Z
Wiper Solvent Hardware
Ring Light
Inspection Interface
Other Specifications:
200-240V, single phase, 50/60 Hz
Air Supply: 100 psi at 4 cfm to 18 cfm
Dims L x W x H (mm): 1203 x 1593 x 1638
Machine Weight (kg): 862
