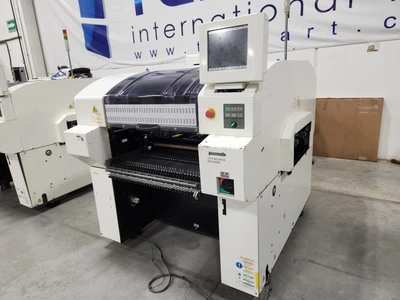

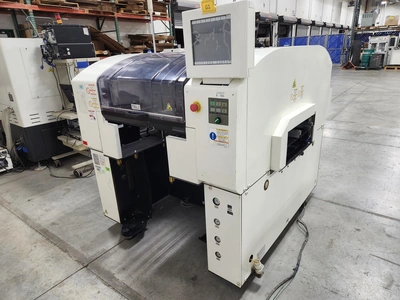

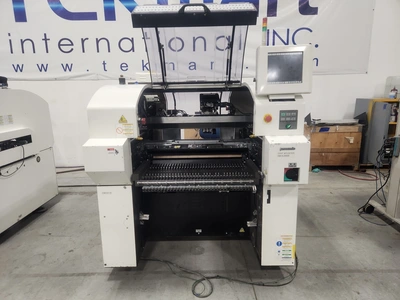

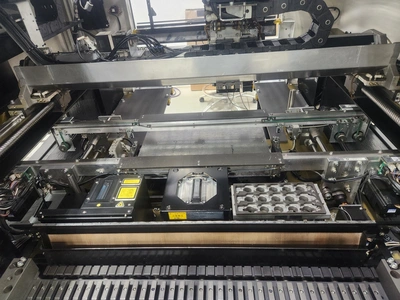

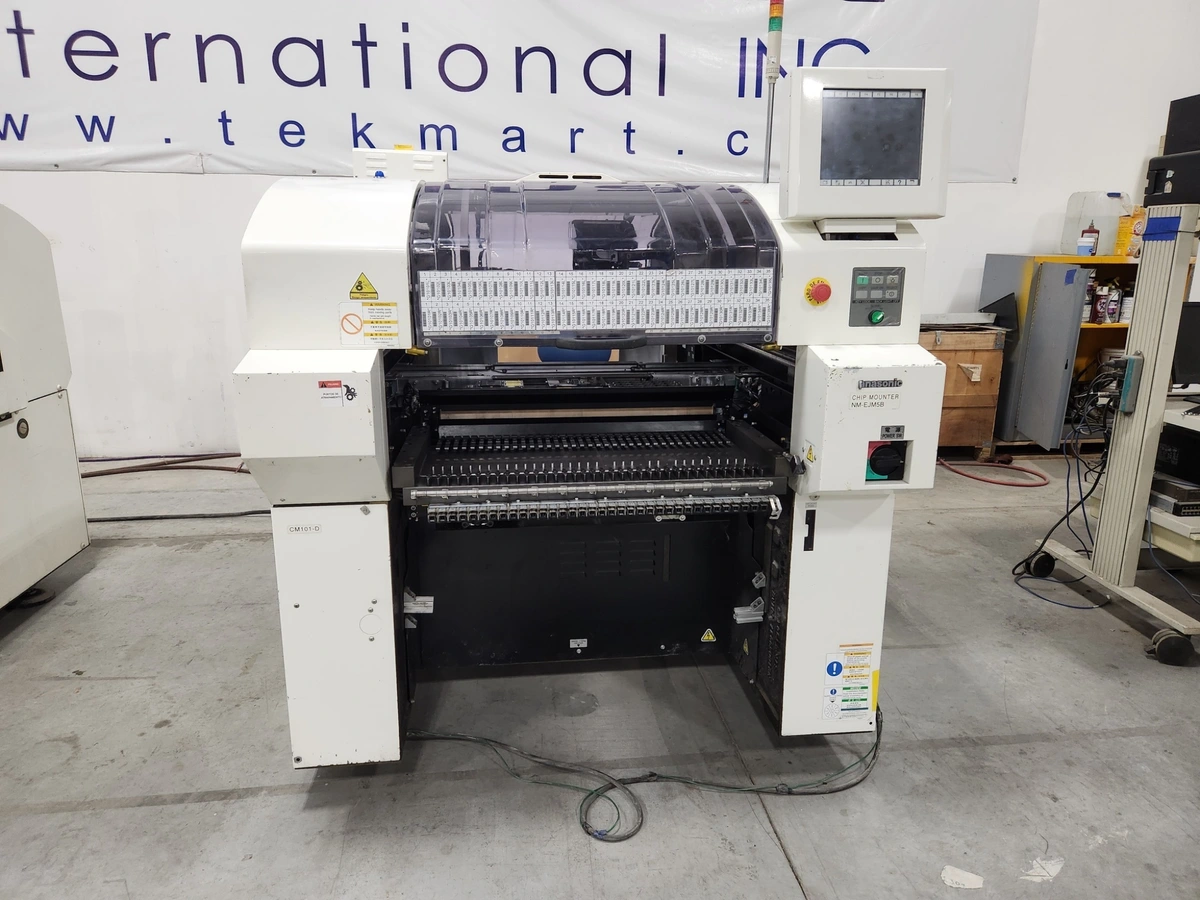

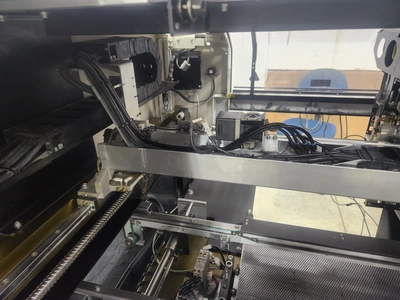

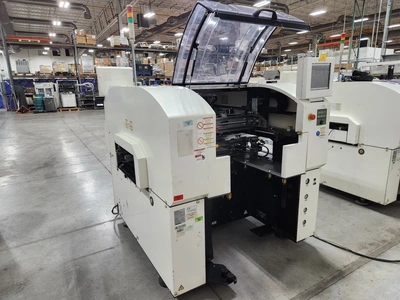

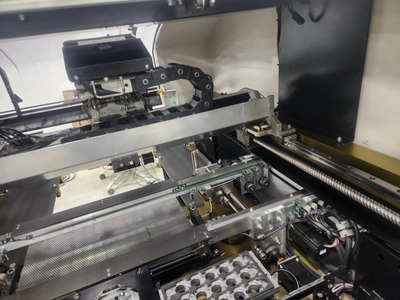

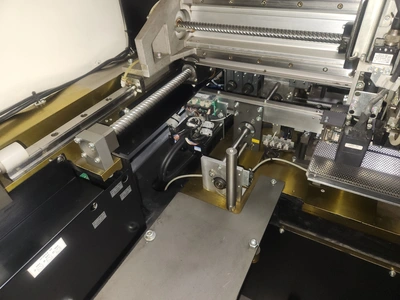

2013 PANASONIC CM101-D Flexible Mounter
Have one to sell?
ConditionUsed
Panasonic Single-Beam Placement Machine

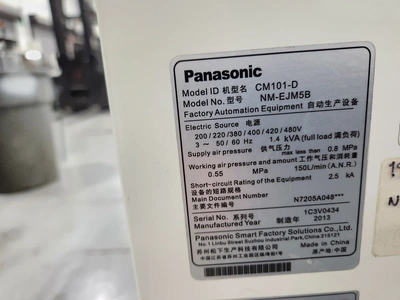

Model Number: NJM5B

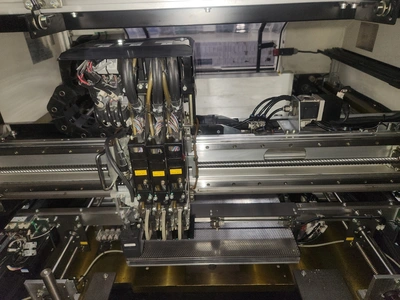

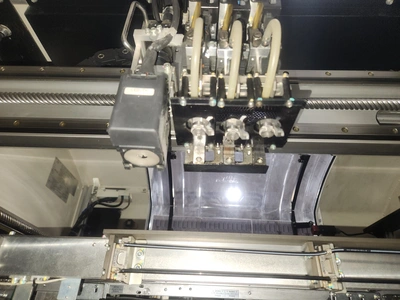

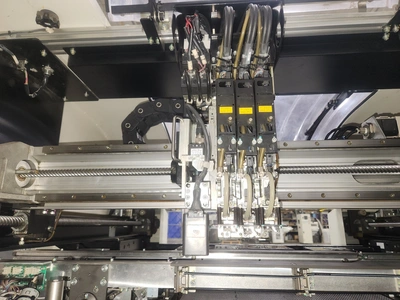

Type B: 3-nozzle head
Accuracy: ±35 µm/QFP (Cpk ≥ 1) (Type B Head)
Max PCB Dimension: L460 mm × W360 mm
Front Feeding Device: feeders (fixed)
Rear Feeding Device: tray feeder (DT50S-20)
Dimensions: W1,530 mm × D1,807 mm × H1,430 mm (main body only)
Weight: 1,720 kg (main body only)
Power Source: 3-Phase AC 200–480V, 1.4 kVA
Pneumatic Source: 0.5 MPa (72.5 PSI), 150 L/min (A.N.R.)
