TK1385 - Mustang Vacuum System VMS1000 Evaporation Disposition System (Vacuum Metallizer) (2013)
Brand: Mustang Vacuum System
Product Code: VMS1000 Evaporation Disposition System (Vacuum Metallizer)
Availability: In Stock
Ex Tax: $0.00

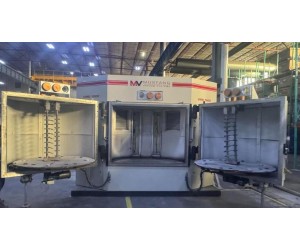

Mustang Evaporation Disposition System (Vacuum Metallizer)
Model: VMS1000
Vintage: 2013
SN: E120262
Machine Specifications:
Pump Package: Leybold SV630 Pump, Leybold WH4400 Blower, (2) 20" Varian Diffusion Pump
Tooling: VMS 1000 - (8) 16.92" or (6) 21.25" planets w/ a total length of 42.52"
Electrical: 480 VAC/3Phase/60Hz x 300A Feed
Grounding: TWO 3/4" Copper Rods with less than 3 ohms of resistance
Water Service: 50 GPM (189.2L/min), 60-80F (15-26C), 40 PSI (2.87 Bars) differential
Air Service: 80 PSI (5.5 Bars), 30 CFM (850 L/min)
Machine Dims: 133.5"L x 138"W x 109"H
Weight: 25,000 Lbs.
Mustang Vacuum Systems
Sarasota, FL USA
Designed for coating low temperature plastics in a batch manufacturing environment Ideal for batch aluminum deposition for lighting reflectors, cosmetics, and paint metal paint decorative finishes. Rotating multi-planetary fixture designs provide uniform coating for large batch size complex 3D substrates, typical applications are automotive lighting, wheels, optics, decorative as automotive interior/exterior trim, cosmetics and more
