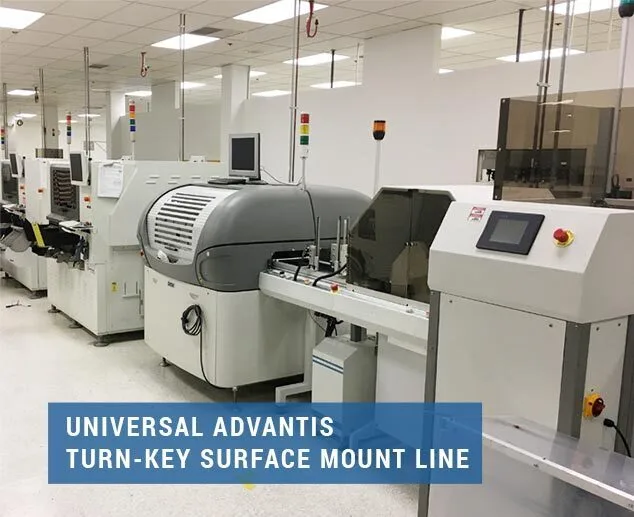

| # | Machine Function | Manufacturer | Model | Configuration/Type | Serial No. |
|---|---|---|---|---|---|

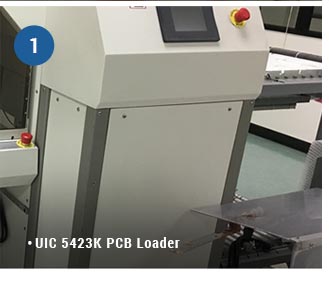

| 1 | Load PCB to conveyor. | UIC | 5423K | PCB Loader | 10087216 |

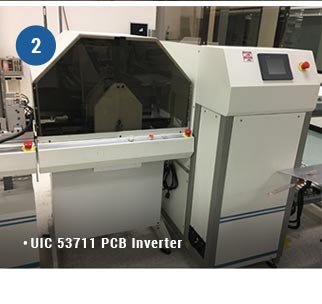

| 2 | Invert board, bypass board stacker. | UIC | 53711 | PCB Inverter | 10087217 |
| 3 | Stack board, bypass inverter, feed PCB into printer. | UIC | 53621 | Board stacker | 10087219 |

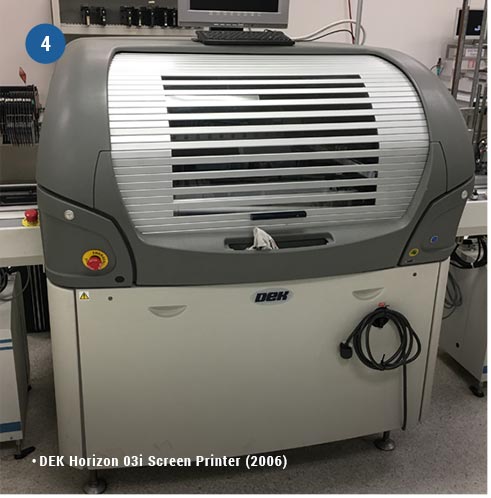

| 4 | Print PCB. | DEK | Horizon 03i | Screen printer | 288626 |
| 5 | Send PCB into mounter 1. | UIC | 53621 | Conveyor | 10087222 |

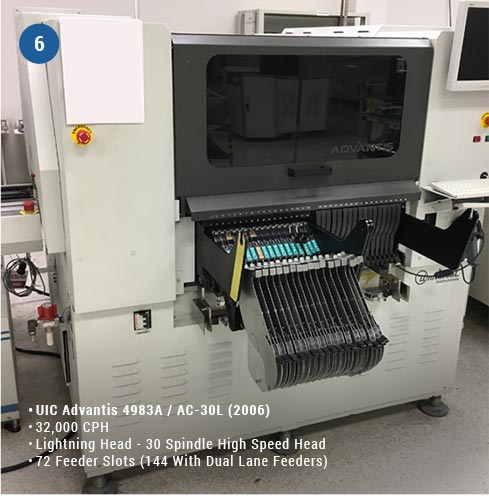

| 6 | High Speed chip mounter | UIC | Advantis 4983A (AC-30L) | Lightning Head-(30) Spindles | 10086114 |
| 7 | Send PCB into mounter 2. | UIC | 53621 | Conveyor | 10087218 |

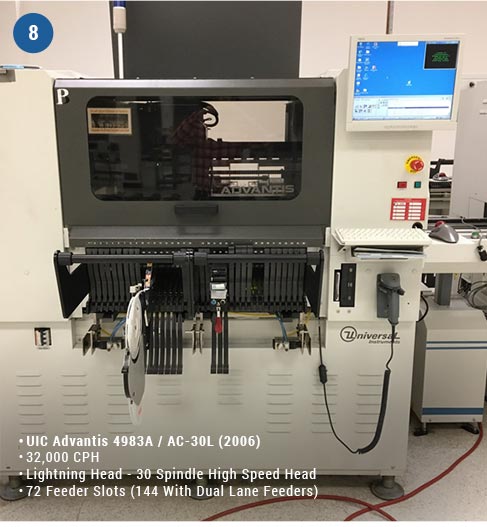

| 8 | High Speed chip mounter | UIC | Advantis 4983A (AC-30L) | Lightning Head - (30) Spindles | 10086115 |
| 9 | Transfer PCB into mounter 3. | UIC | 53741 | Shuttle gate conveyor | 10087221 |

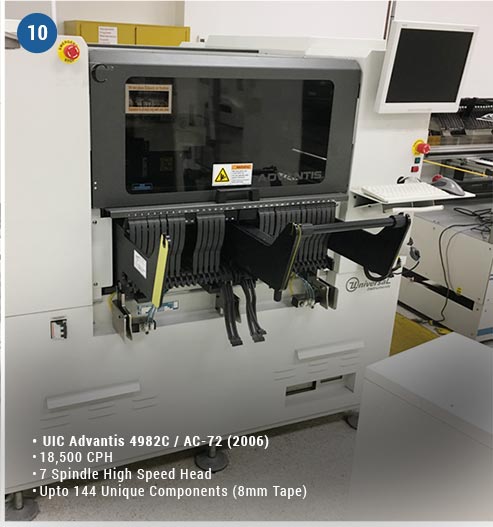

| 10 | Mount fine pitch components. | UIC | Advantis 4982C (AC-72) | Multi-Placement Head - (07) Spindles | 10085811 |
| 11 | Send PCB into mounter 4. | UIC | 53621 | Conveyor | 10087220 |

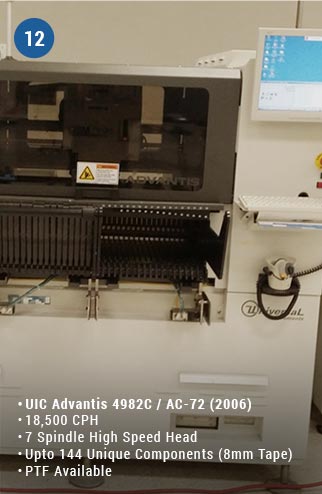

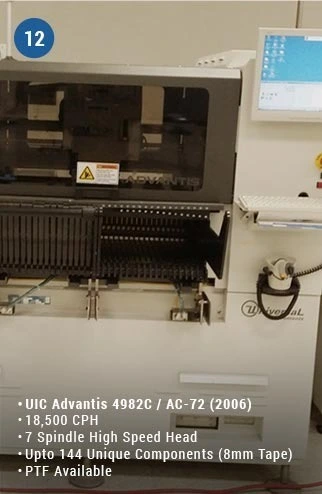

| 12 | Mount fine pitch components. | UIC | Advantis 4982C (AC-72) | (07) Spindles - Tray Unit available (PTF 4559A) | 10086093 |

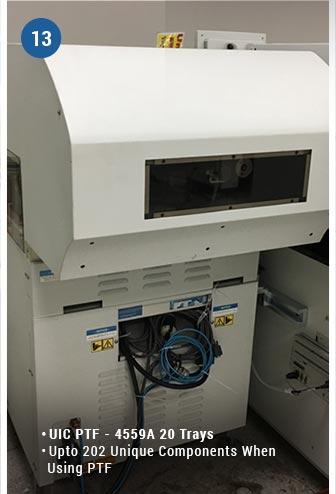

| 13 | Tray feeder for mounter 4. | UIC | PTF-4559A | 20 Trays | 10086046 |
| 14 | Receive board from mounter 4. | UIC | 53621 | Conveyor | 10087132 |
| 15 | Inspect PCB before load into reflow. | UIC | 53621 | Conveyor | 10087223 |

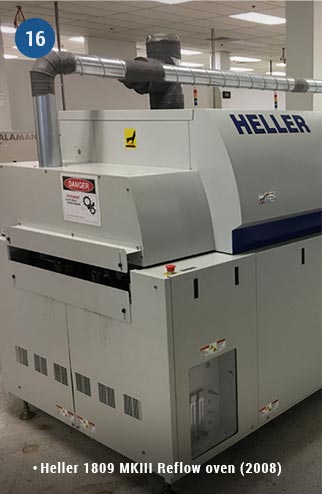

| 16 | Reflow PCB. | Heller | 1809 MKIII | Reflow oven | 1208P3-87N95-30006-05 |
| 17 | Receive board from reflow. | UIC | 53621 | Conveyor | 10087224 |
| 18 | Load PCB into Unloader. | UIC | 53621 | Conveyor | 10087225 |

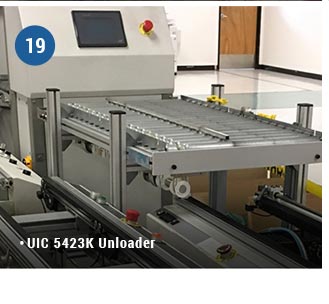

| 19 | Unload PCB out of conveyor. | UIC | 5423K | Unloader | 10087226 |
