TK1199 - Universal AC-60D 4990E Placement Machine (2010)

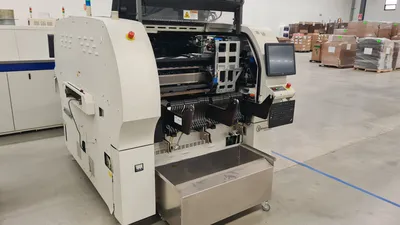

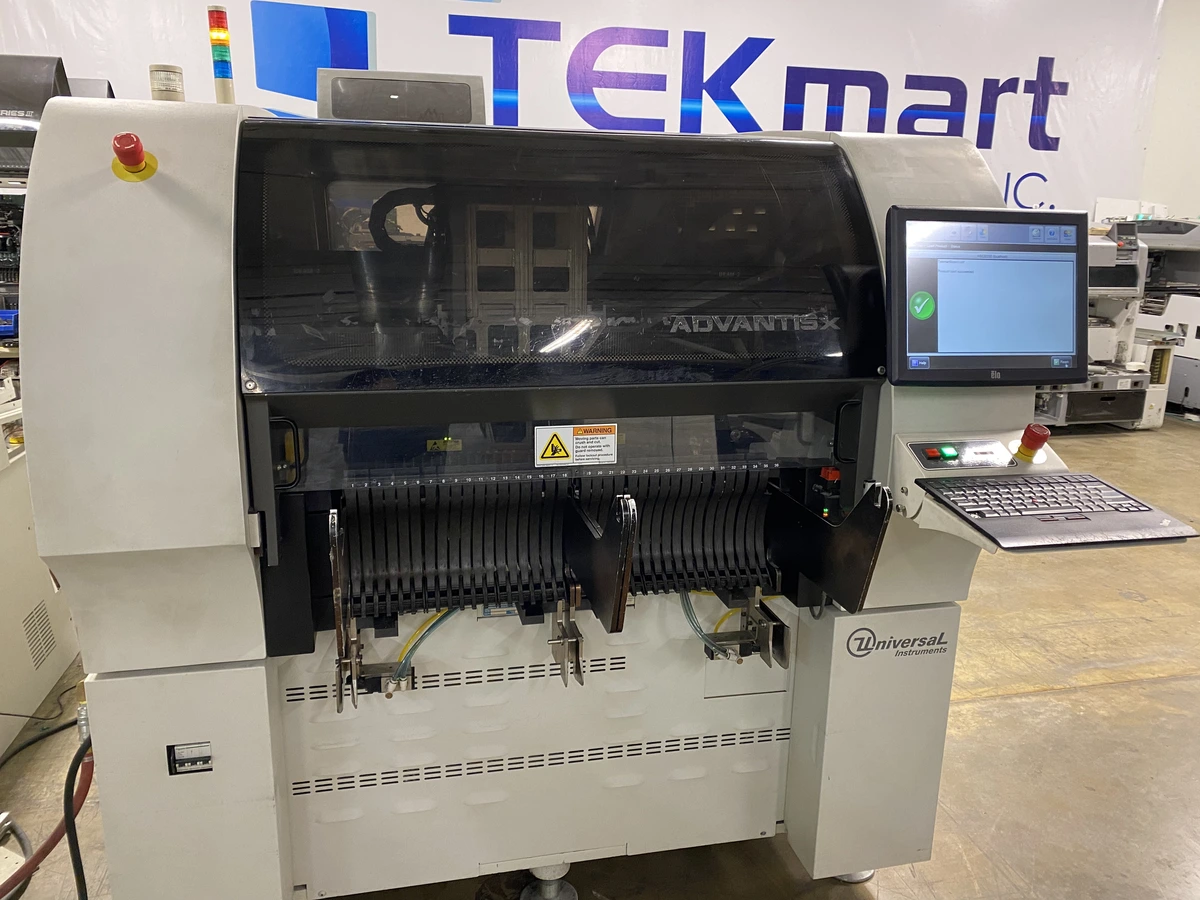

Universal AdvantisX AC-60D 4990E Placement Machine (2010)

Brand: Universal Instruments Corporation
Model: Genesis AC-60D
Product Code: 4990E
Year: 2010
Serial: 10101685
Product Tree: 49714305 HSCE035
UPS+ System Version 8.5.5.9

Machine Specifications:

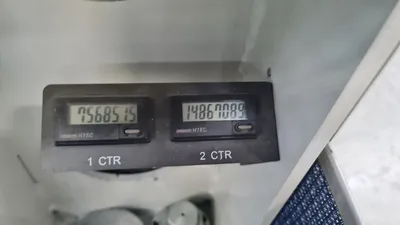

Placement 1: CTR 7,568,723
Placement 2: CTR 14,867,519

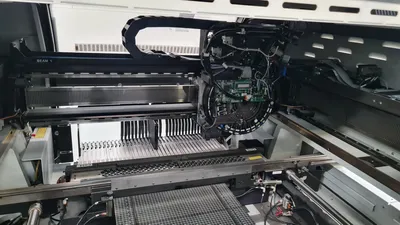

Beam Qty: 2

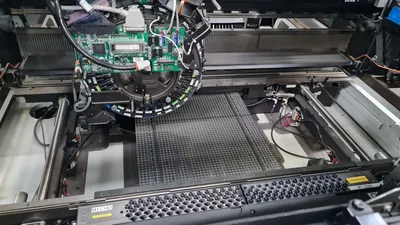

Head Type: Lightning Heads
Spindle on Head: 30 each Head
PCB Flow: Left to Right
Placement Rate: 60,000 MAX CPH
PCB Dimensions: Length 50.8mm to 508mm Width 90mm to 508mm
"X, Y Motor Type":Linear Motor VRM
Conveyor Type: Single conveyor
Rail Width Control Type: Automatic
Basler Cameras

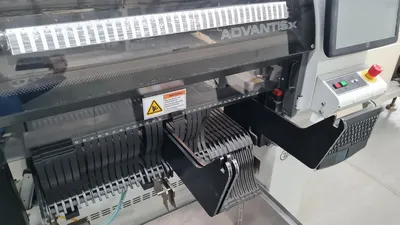

Feeder Banks Removable: 4

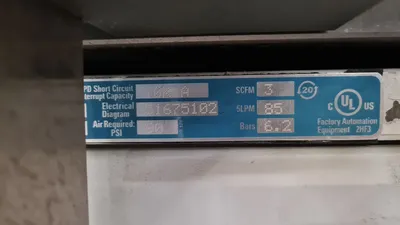

Voltage 200-240VAC nominal
Pressure: 90 Psi
Frequency: 50-60Hz
Full Load Current: 35 amps
