TK1232 - Olympus DP-6500-CC Delta Premium Handheld XRF Analyzer (2013)

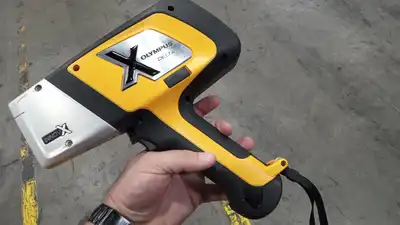

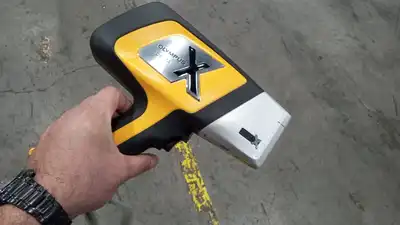

Olympus DP-6500-CC Delta Premium Handheld XRF Analyzer

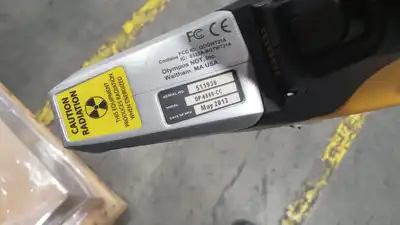

Model: DP-6500-CC
Mode: RoHS
Date of Manufacture: May 2013
Serial Number: 511936

Specifications:

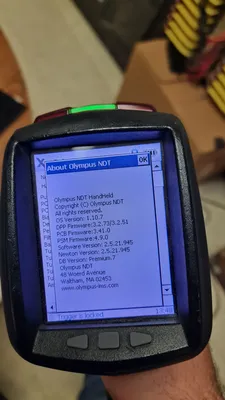

Olympus NDT HandHeld
0S Version: 1.10.7
DPP Firmware: 3.2.73/3.2.51
PCB Firmware:3.41.0
P5M Firmware: 4.9.0
Software Version: 2.5.21.945
Newton Version: 2.5.21.945
DB Version: Premium

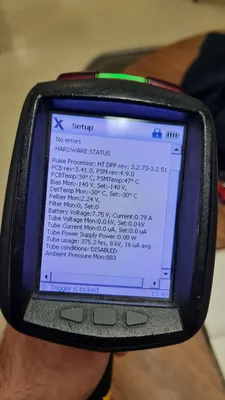

Hardware Specs:
Pulse Processor: HT DPP reM: 3.2.73-3.2.51
PCB rev:3,41.0, PSM rev:4.9.0

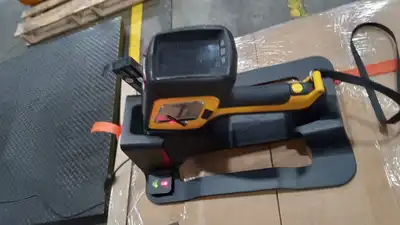

- Delta Docking Station (DDS included) for dedcated charging and calibration unit.

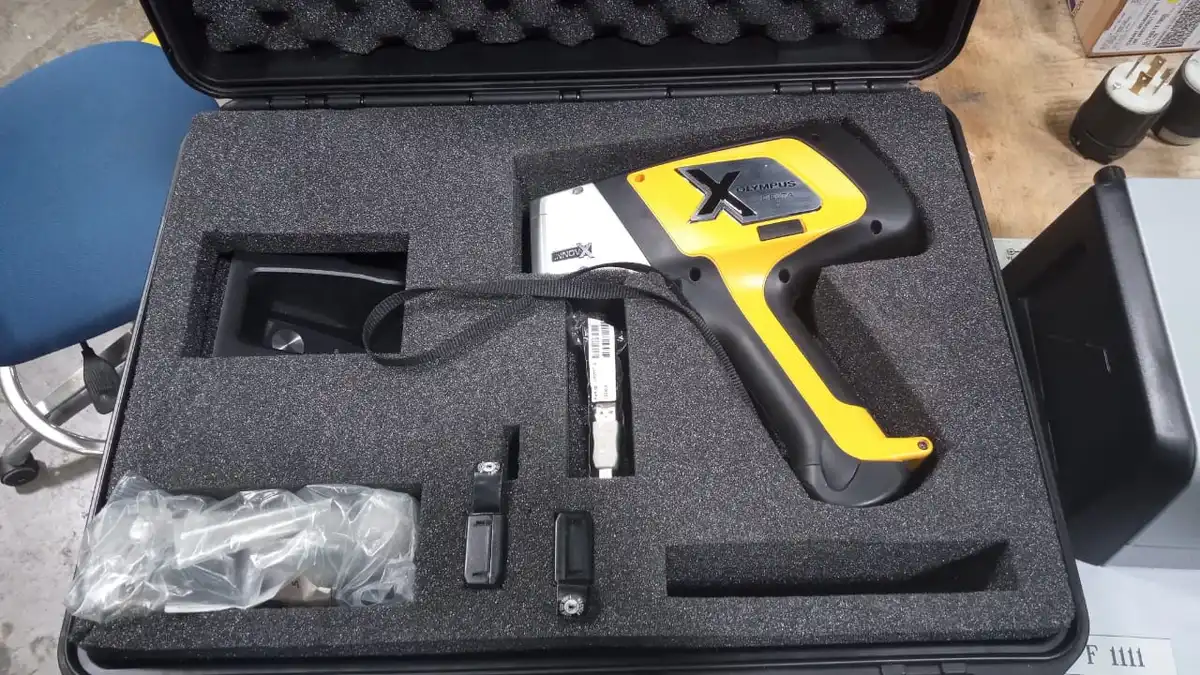

- Rugged waterproof transport case

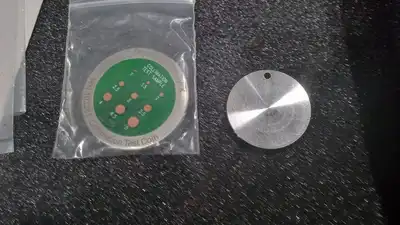

- Calibration Check (CalCk) 316 reference coupon/coin

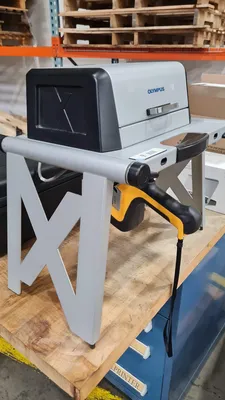

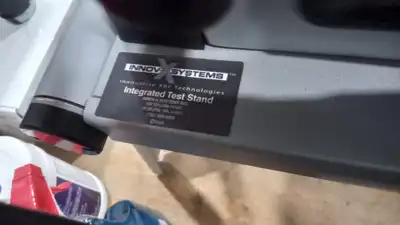

- InnovXsystems Integrated Test Stand included
- Camera
- USB data cables
- FCC and CE Marked

Supported Elements
(For full lists of supported elements under various modes, please refer to the attached user manual.)

Alloy Analysis Modes

Alloy Plus mode:
Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, W, Hf, Ta, Re, Pb, Bi, Zr, Nb, Mo, Pd, Ag, Cd, Sn, Sb PLUS
Mg, Al, Si, P, and S.

Mining Analysis Modes

Mining mode;
Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, W, As, Pb, Bi, Zr, Mo, Ag, Cd, Sn, and Sb

Mining Plus mode:
Al, Si, P, S, K, Ca, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, W, As, Pb, Bi, Zr, Mo, Ag, Cd, Sn, and Sb

Car Catalyst mode:
Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, W, Hf, Ta, Re, Pb, Bi, Zr, Nb, Mo, Ag, Sn, and Sb,
PLUS Rh, Pt, and Pd.

Soil Analysis Modes

Soil environmental mode:
K, Ca, S, P, Cl, Ti, Cr, Mn, Fe, Co, Ni, Cu, Zn, Hg, As, Pb, Se, Rb, Sx, Zx, Mo, Ag, Cd, Sn, Sb, and Ba

Soil Exploration mode:
K, Ca, S, P, Cl, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, W, Hg, As, Pb, Bi, Se, Th, Rb, U, Sx, X, Zx, Mo, Ag, Ca, Sn, and So

Consumer Goods Analysis Modes

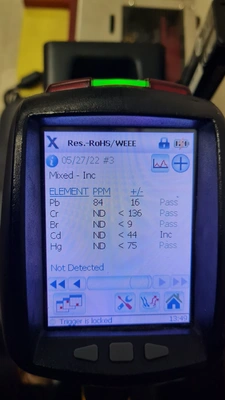

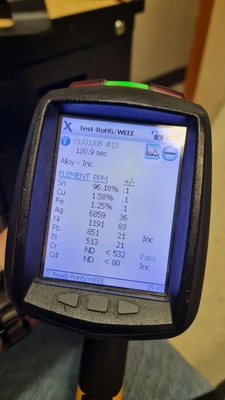

RoHS mode:
Cr, Hg, As, Pb, Br, Cd, PLUS C1, Ti, Fe, Co, Ni, Cu, Zn, Sn, Sb, and Ba.

Consumer product mode:
Analysis software designed for CPSIA and Prop 65 testing. Pb content displayed as Pass/Fail, based on regulated limits.
Additional elements: Cl, Ti, Cr, Fe, Co, Ni, Cu, Zn, Hg, As, Br, Cd, Sn, Sb, and Ba are also reported.

Halogen free mode:
Tests plastics and mixed materials for the presence of bromine (Br) and chlorine (Cl)
