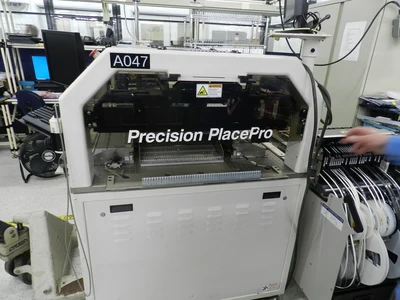

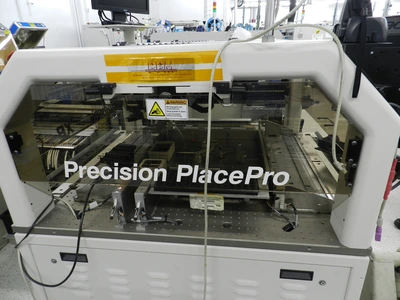

TK1273 - PPM Quad IVc Pick-&-Place Machine (2010)

PPM Quad 4c Placement Machine (2010)

Brand: PPM
Model: Quad IVc
Year: 2010

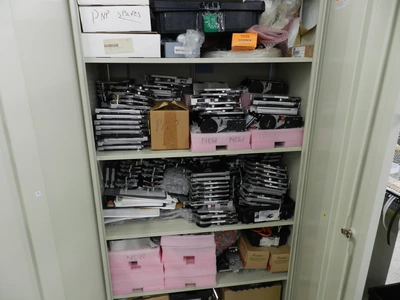

Factory refurbished. Upgraded to Windows OS. Includes 240+ feeders, vibratory feeder, and JEDEC tray holder.

Machine Specifications:

• Placement rates of up to 3,600 cph
• Handles complex boards - with components from 0402s to 3.00" square
• The QuadAlign system provides automatic correcting for X, Y and theta positioning before placement
• X-Y linear glass scale encoders provide exact placement coordinates with consistent ±60 micron repeatability.
• Optional Intelligent Feeder System for setup verification
• 0.060mm ultra-fine pitch capable
