TK1364 - Panasonic DT401-F Modular Multi-functional Placement Machine (2008)

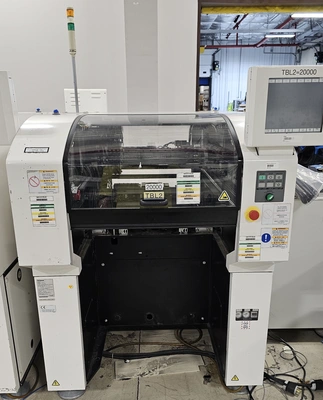

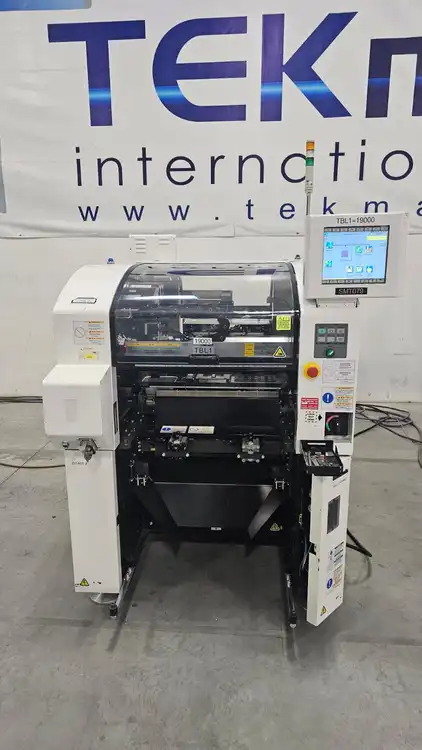

Panasonic DT401-F Modular Multi-functional Placement Machine (2008)

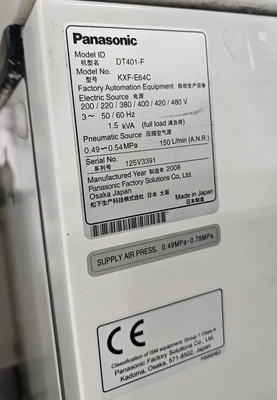

- Model ID: DT401-F
- Model Number: KXF-E64C
- Power: 3-phase AC 200/220/380/400/420/480V
- Serial Number: 125V3391
- Mfg. Year: 2008

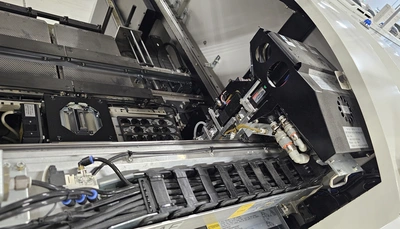

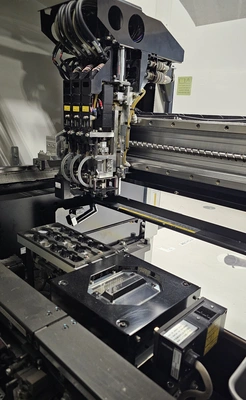

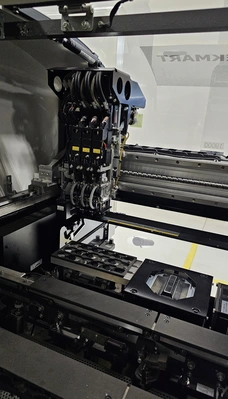

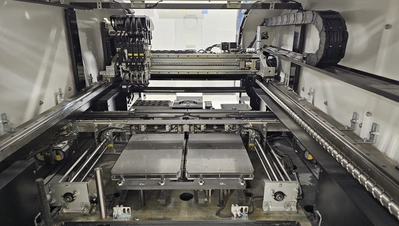

- Head Type: Single Gantry with 3-Nozzle head

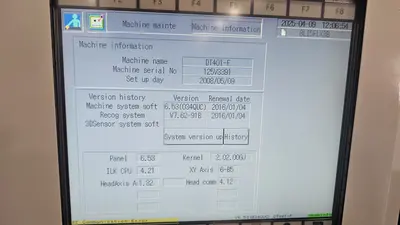

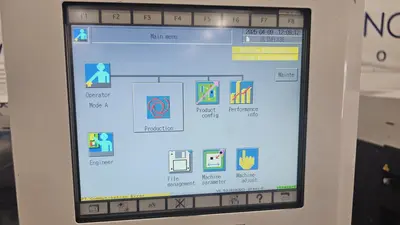

- Machine System software: 6.53 (034QUC) - renewed in 2016
- Recog. System: V7.62-91B

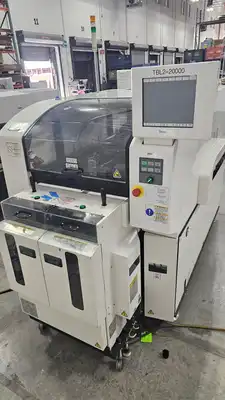

- Tray Unit available: DT45T-40 tray unit SN: 1MJZ0555 (2008)
- CE Marked

Features:
- PCB Dimensions: from 50 mm × 50 mm to 510 mm × 460 mm
- Component Dimensions: 0402 (1005) chip to L 100 mm × W 90 mm × T 25 mm
- PCB Exchange Rate: 0.9 s (Board length: up to 240 mm)
- Maximum Speed:
= Tape: Max. 54
= Single Tray: Max. 20
= Twin Tray: Max. 40
- Maximum Speed:
= 0.7 s/chip
= 0.8 s/QFP
= 1.2 s/QFP
