TK1377 - Nutek LYNX NTM510ICL-05-1 - 1 meter conveyor (2000)

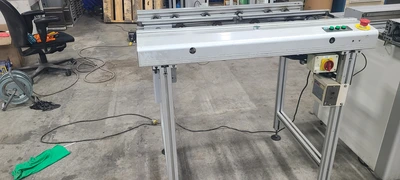

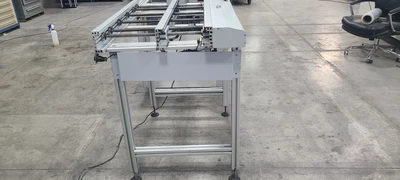

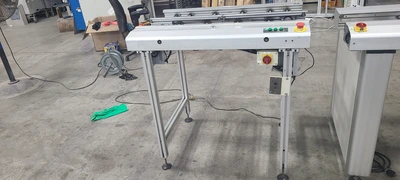

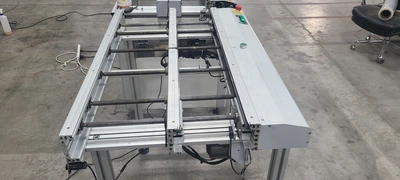

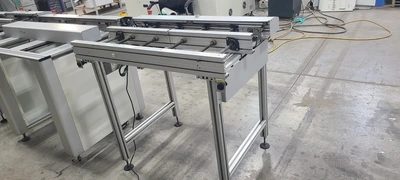

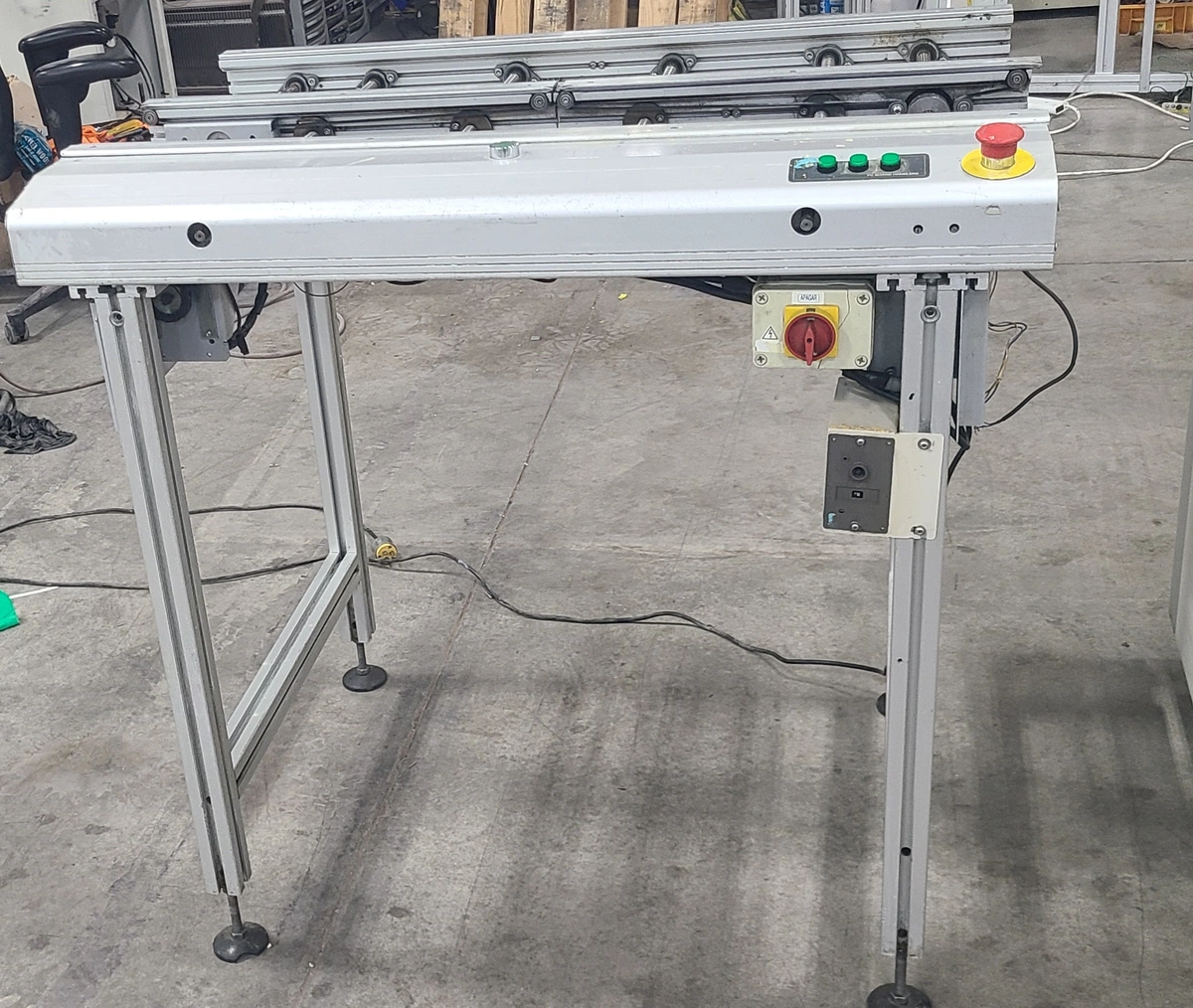

LYNX / NUTEK NTM510ICL-05-1 - 1 meter conveyor

Brand: LYNX / NUTEK
Model: NTM510ICL-05-1 - 1 meter conveyor
YOM: 2000
SN 2000-0568 D02
Rail length: 1000 mm
PCB Width: 50 to 350 mm
PCB Direction: L to R or R to L
Speed: Adjustable
Switch: Foot Switch
Control System: PLC
Communication: SMEMA for both in & out
Dimensions: 1000*700*950 mm
Power Supply: 1 PH AC 110V 50/60Hz

Rugged steel design, improves equipment stability.
Smooth stainless steel screw to adjust the width of the rail.
Variable speed control.
Circuit board testing mode.
Using a dedicated aluminum slot for transfer orbit to prevent PCB stuck.
Heavier bottom design, not easily shift.
Machine length can be customized.
Compatible with SMEMA interface.
