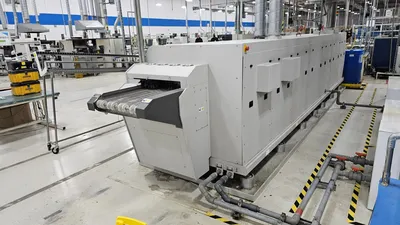

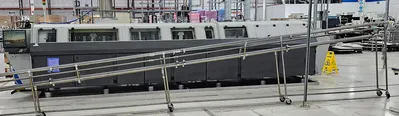

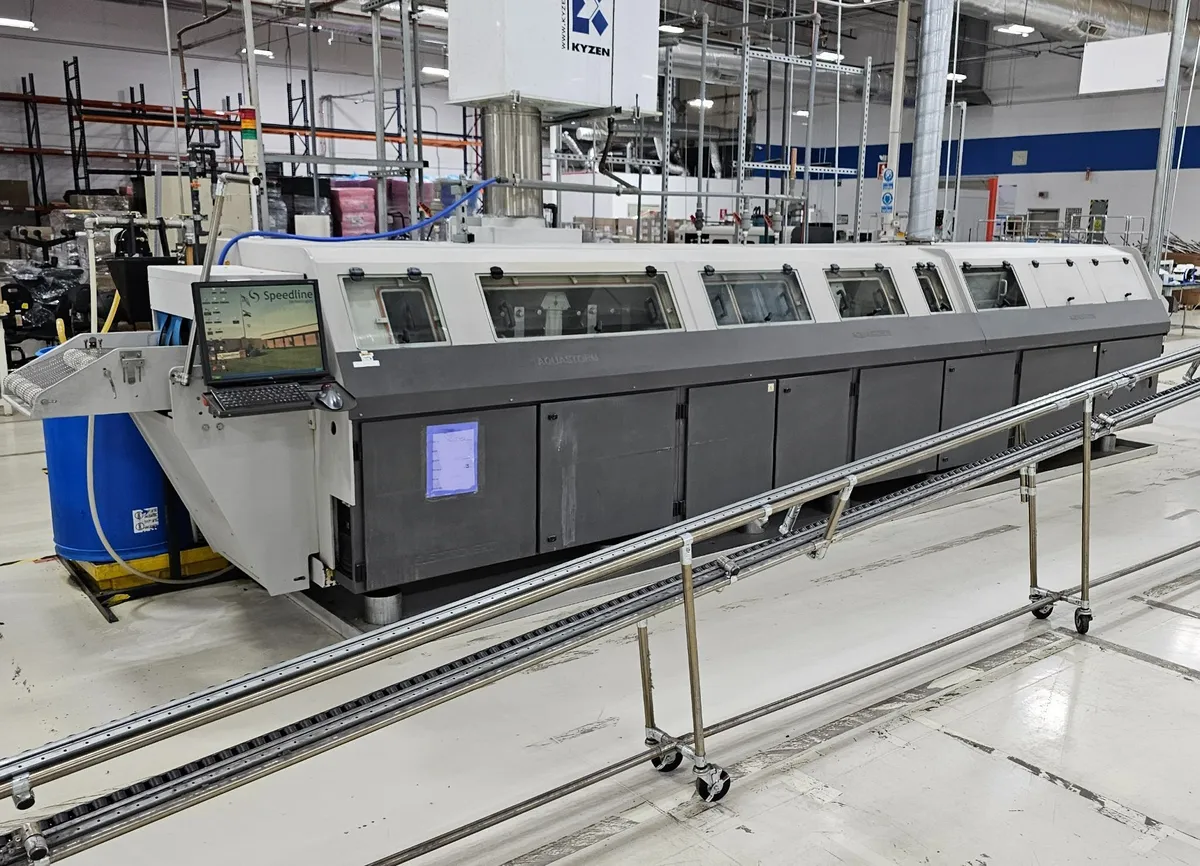

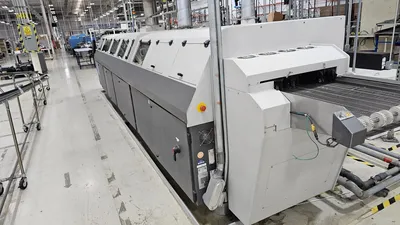

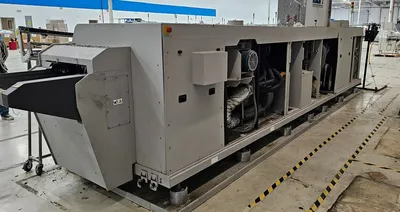

TK1395 - Speedline Aquastorm 200C In-line PCB Cleaner (2013)

Model: Aquastorm 200C
Manufacturer: Speedline Technologies / Electrovert
Year Built: 08/2013
Serial Number: AS2C-20137
Process Width: 20 in (508 mm)

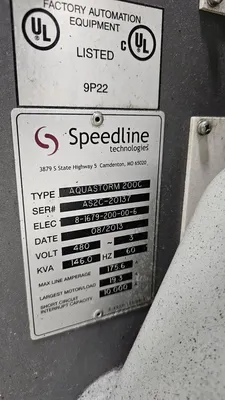

Electrical:

Voltage: 480 V, 3-phase, 60 Hz
Max Line Amperage: 175.6 A
Largest Motor/Load: 19.3 A
KVA Rating: 146.0 kVA
Short Circuit Interrupt Capacity: 10,000 A

Mechanical / Process Configuration:

Inline System: Yes
Dryer Type: Torrid (forced hot air)
Drip Tray: Yes
Rear Gauges: Yes (operator monitoring)

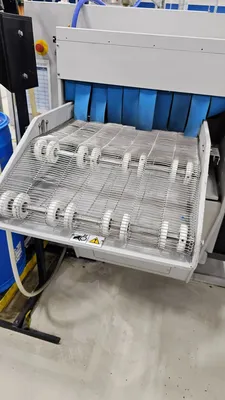

Conveyor / Handling: Stainless steel mesh conveyor with adjustable width

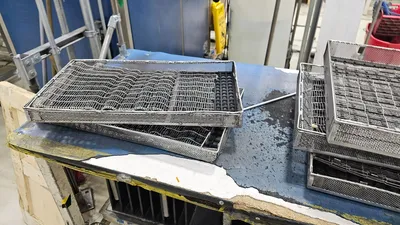

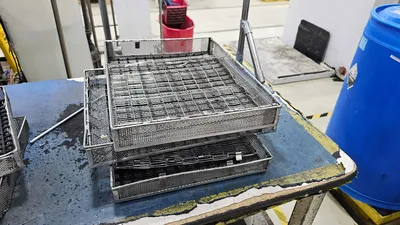

Fixtures: Stainless mesh baskets also compatible

Wash / Rinse / Dry Stages:

Prewash Nozzles: V-Jet
Wash Configuration: Dual HURR (High-Pressure Underboard Roto-Round spray)
Wash Intermix: Yes (recirculating chemical wash)
Chemical Package: Yes (configured for chemical wash, e.g., Kyzen Aquanox)
Rinse Configuration: Dual HURR (dedicated rinse stages)
Final Rinse Nozzles: V-Jet
Dryer: Torrid hot-air dryer

Chemical & Rinse Management:

Option: Selectable Chemical Wash Bypass (OEM Special):
NSR47337179-01 → Selectable incoming CI spray: Ball valves + solenoid allow choice of chemical wash or facility water (DI).

Option: Dedicated Chemical Drain (OEM Special):
NSR47337179-02 → CI drain line out with 1.5” NPT fitting, separated from rinse.

Option: Flow Meter (OEM Special):
NSR56372384-01-4 → Integrated flow meter on incoming CI manifold.

Software / Controls:

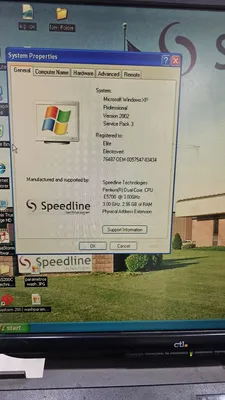

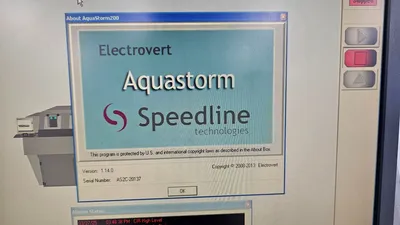

HMI / Software Version: v1.14.0
PLC Controlled Recipes: Yes (stage control, wash/rinse settings, bypass functions).

Chemistry

Compatible Solutions: Aqueous cleaning chemistries (e.g., Kyzen Aquanox A4625, A4639)

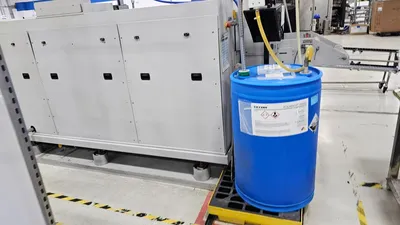

External Drum Connection
