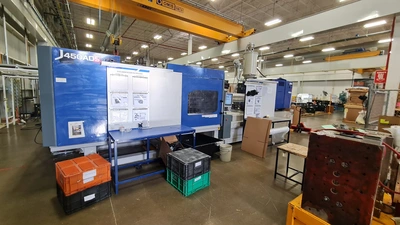

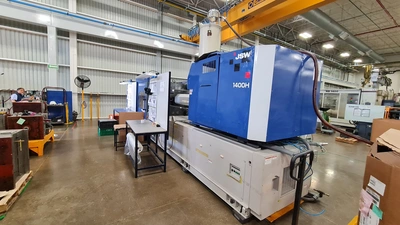

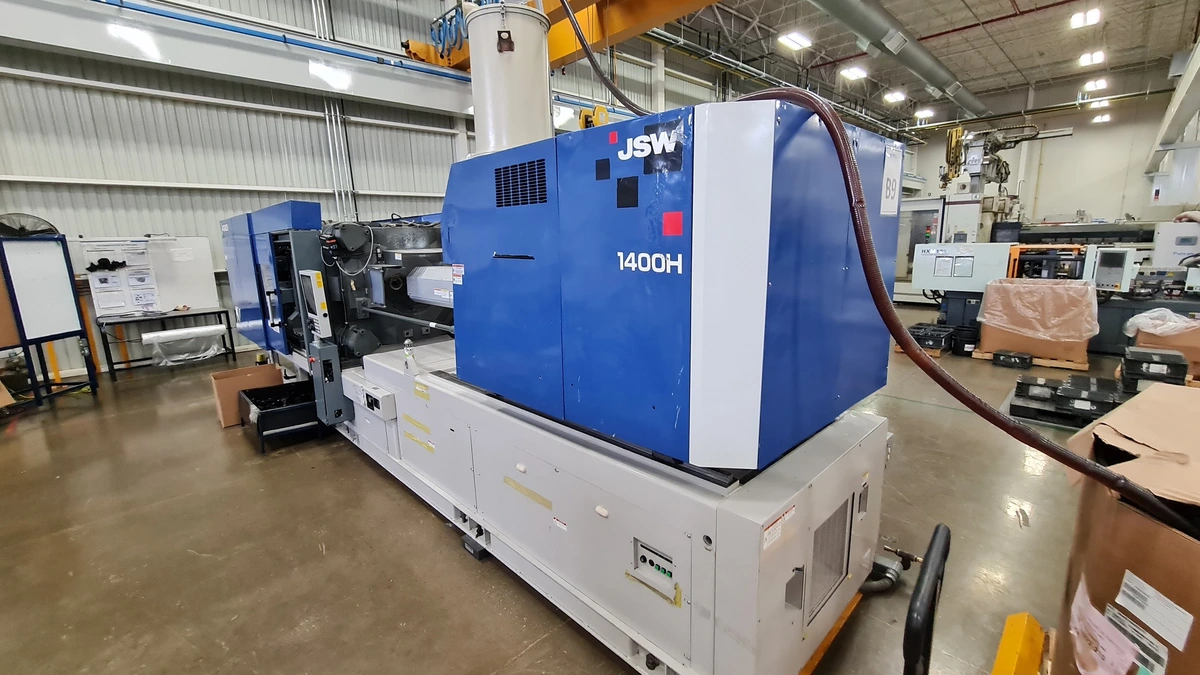

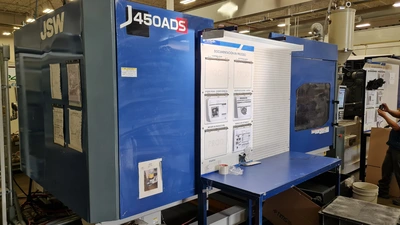

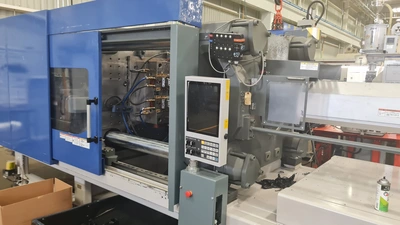

JSW J450DS-1400H Electric Injection Molding Machine (2020)

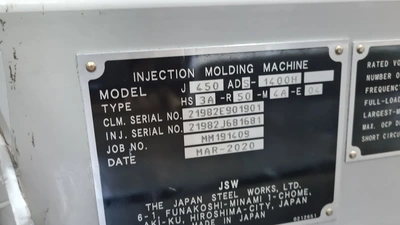

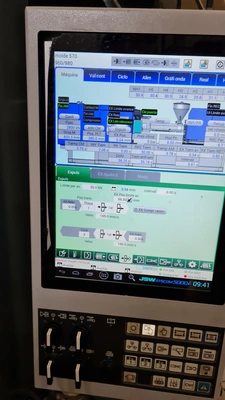

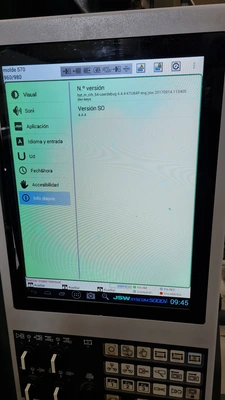

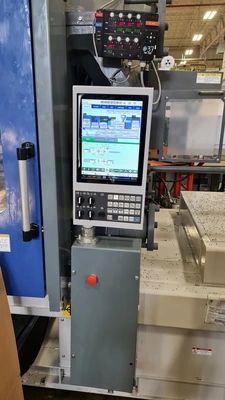

JSW J450DS-1400H Electric Injection Molding Machine (2020)Brand: JSWModel: J450DS-1400HType: All Electric Servo Drive Injection Molding MachineSN: MM191403Mfg Date: March 2020Controller: JSW Syscom5000iRun Time: 5894 hoursTotal Cycles: 447864

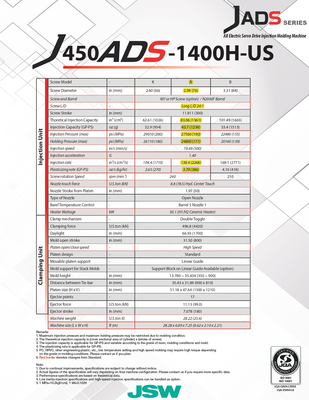

Injection Unit:Screw Model: AScrew Diameter: 2.99 in (76 mm)Screw Stroke: 11.811 in (300 mm)Theoretical Injection Capacity: 83.06 in3 (1361 cm3)Injection Capacity (GP-PS): 43.7 oz (1238 g)Injection Pressure (max): 27560 psi (190 Mpa) Holding Pressure (max): 24800 psi (171 Mpa)Injection Speed: 19.69 in/s (500 mm/s)Injection acceleration: 1.5 GInjection rate: 138.4 in3/s (3.79 cm3/s)Plasticizing rate (GP-PS): 3.79 az/s (386 kg/hr)Screw Rotation speed: 240 rpm/minNozzle touch force: 8.8 U.S.ton (78.5 kN) Hyd. Center TouchNozzle stroke from Platen: 1.97 in (50 mm)Barel Temperature Control: Barrel 5 Nozzle 1Heater Wattage: 50.1 (H1/H2 Ceramic Heater) kW

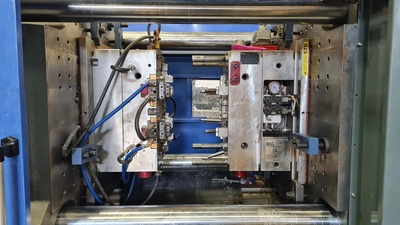

Clamping Unit: Clamp mechanism: Double ToggleClamping force: 496.8 U.S.ton (4420 kN)Daylight: 66.93in (7100mm)Mold open stroke: 31.50 in (800mm)Platen open/close speed: High SpeedPlaten design: StandardMovable platen support: Linear GuideMold height: 13.780 in~35.434 in (350mm~900mm) Distance between Tie bars: 35.43in x 31.87in (900mm x 810mm)Platen size (HxV): 51.18 in x 47.64 in (1300mm x 1210mm)Ejector points: 17Ejector force: 11.13 U.S.ton (99.0 kN)Ejector stroke: 7.078 in (180 mm)
Machine weight: 28.22 U.S.ton (25.6 t)Machine size (LxWxH): 28.28ft x 6.89ft x 7.25ft
