Used YAMAMOTO Scientific DX300 | Accessories & Parts - Oven

Description

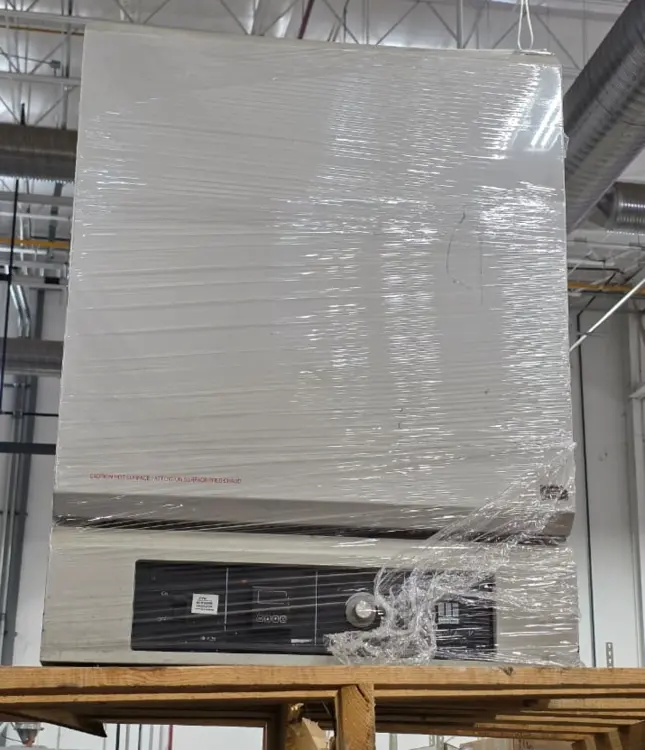

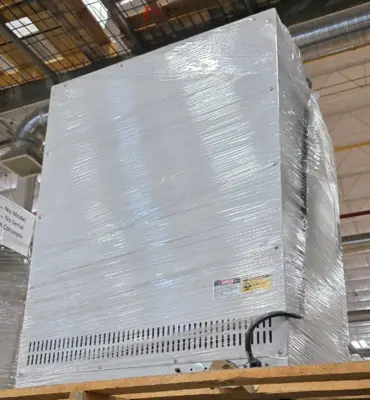

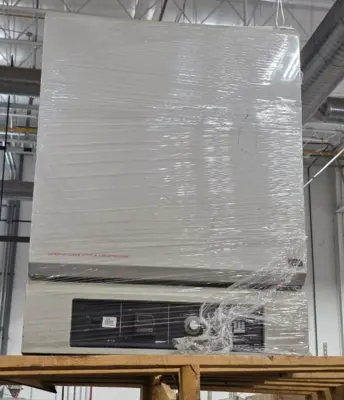

Yamato Scientific DX300
Gravity Convection Oven
Serial #: DX301B6Z00092

- Temperature control range/Temperature accuracy: (Ambient temp.: 23°C, No load). Ambient +5°C to 300°C
- Temperature uniformity: ±1.9°C @ 100°C/±3.0°C @ 200°C (set temp.: 260°C, Exhaust opening: one-third opened)
- Temperature control range ±210°C (set temp.: 280 or 3000°C, Exhaust opening: 1/3 opened)
- Temperature rise time: Approx. 45min. (Room temp. to 300°C)
- Heater: Iron-chrome heater, 0.9kw
- Controller: HiTEC® VS3 type
- Temperature control systems: PID control for heater output by microprocessor
- Setting systems: Digital
- Operation mode: Fixed temperature, Quick auto stop, Auto start operation
- Sensor: K-thermocouple
- Additional functions: Lock function, Auto recovery after power failure, Calibration offset
- Self-diagnostic functions: Failure of Sensor, heater, SST, memory, internal communication, temperature input circuit, automatic overheat prevention, device, independent overheat prevention, device, measured temperature
- Safety device: Earth leakage, Overheat prevention device
- External dimensions (W xD x H): 15.7 x 17.3 x 24.3 inch (400 x 440x 617 mm)
- Internal dimensions (W x D x H) 11.8 x 12.2 x 11.8 inch (300 x 310 x 300 mm)
- Capacity: 1.0 cu. ft (28L)
- Door: Single door, silicon packing
- Power supply (50/60Hz): 115V AC 8A
- Weight: Approx. 52.9 lbs. (24Kg)
