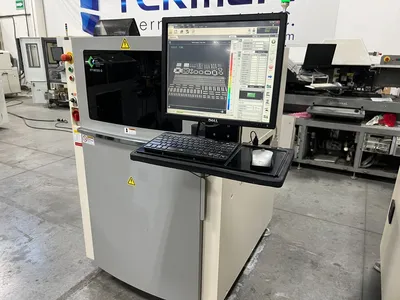

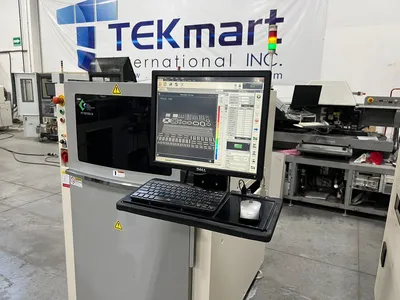

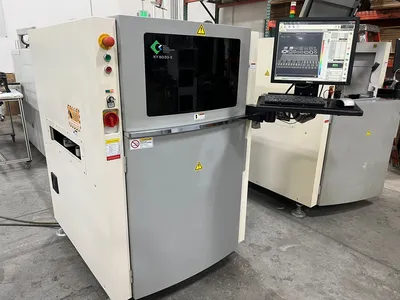

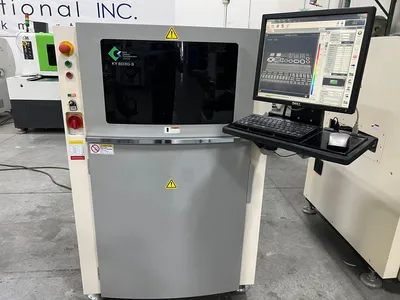

Koh Young KY8030-3 3D Solder Paste Inspection System (2010)

Description

Koh Young KY8030-3 3D Solder Paste Inspection System (2010)

Manufacturer: Koh Young Technology Inc.
Model: KY8030-3
Type: 3D Solder Paste Inspection Machine
Year of Manufacture: 2010
Country of Manufacture: Korea

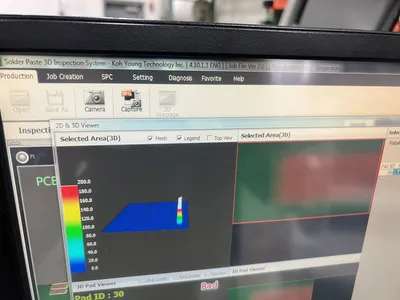

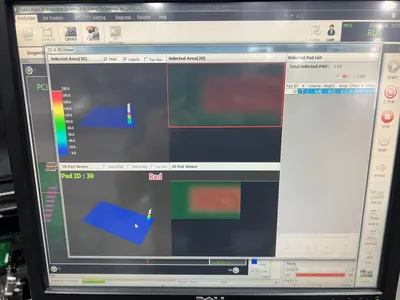

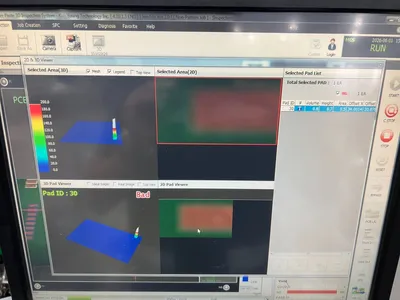

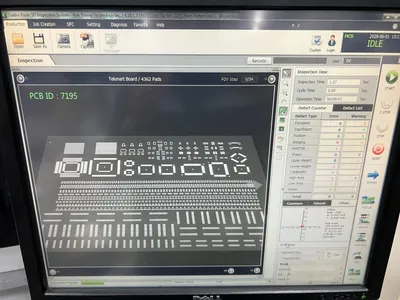

Software / Controller:
Software Version: 4.10.13 ENG
Job File Version: 2.0
Operating System: Windows 7 Ultimate SP1
Dell Controller PC
Intel Xeon W-2133 Processor @ 3.60 GHz
32 GB RAM
64-Bit Operating System
Single Lane
Left to Right

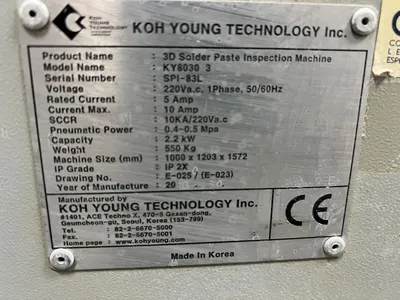

Electrical Requirements:
220 VAC
Single Phase
50/60 Hz
Rated Current: 5 A
Maximum Current: 10 A
SCCR: 10 kA @ 220 VAC
Power Consumption: 2.2 kW

Pneumatic Requirements
0.4 – 0.5 MPa

Mechanical Specifications:
Dimensions: 1000 x 1203 x 1572 mm
Weight: 550 kg
IP Grade: IP2X

Inspection Functions:
Excessive
Insufficient
Position
Bridging
Shape
Upper Height
Lower Height
Coplanarity
High Area
Low Area
Smear
