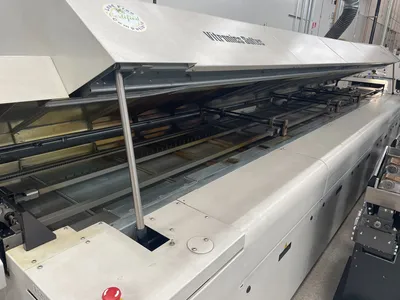

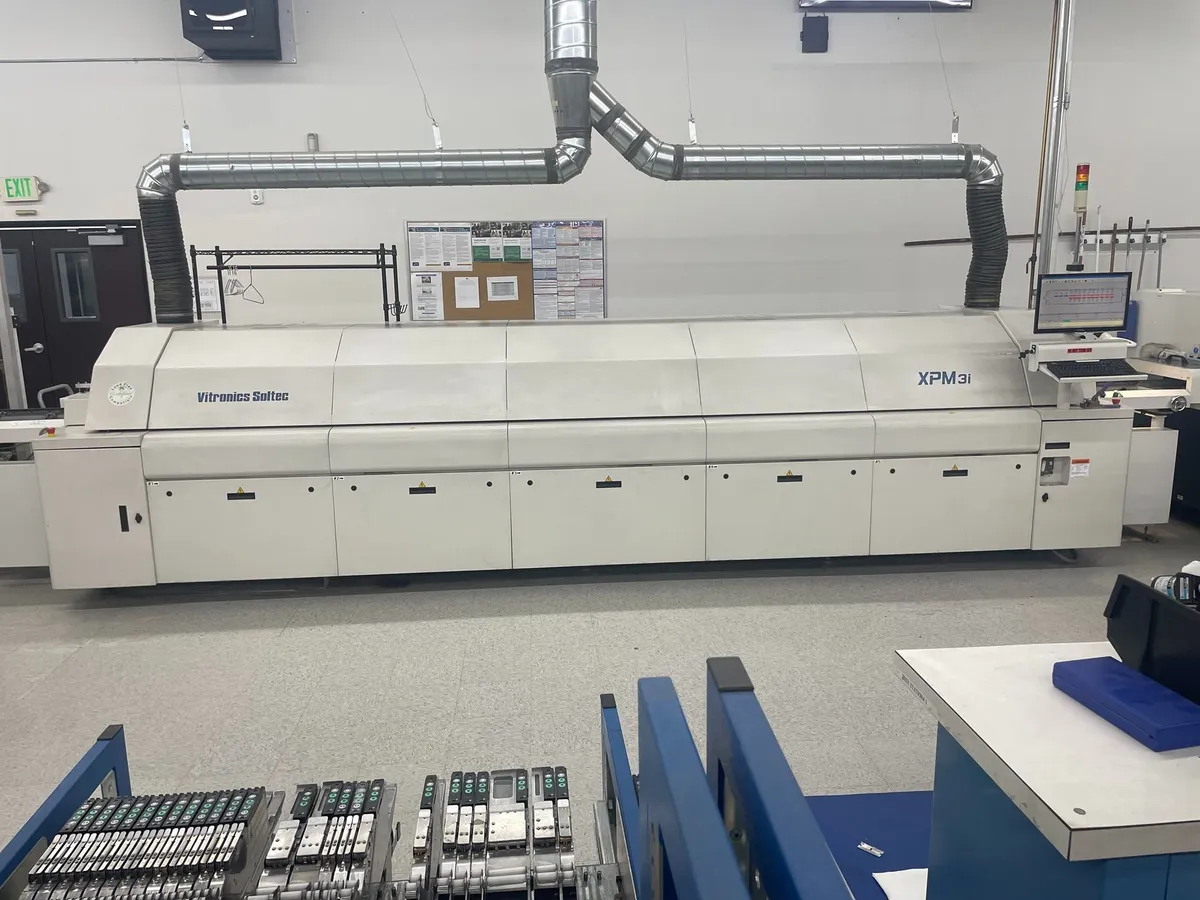

Vitronics Soltec XPM3i 1030 10-Zone Reflow Oven (2012)

Description

Vitronics Soltec XPM3i 1030 10-Zone Reflow Oven (2012)

Description:
The Vitronics Soltec XPM3i 1030 Reflow Oven is available individually or as part of a complete turnkey Panasonic SMT production line. The machine is connected to power and available for inspection by appointment.

Machine Details:
Manufacturer: Vitronics Soltec
Model: XPM3i 1030
Machine Type: Reflow Oven
Year of Manufacture: 2012

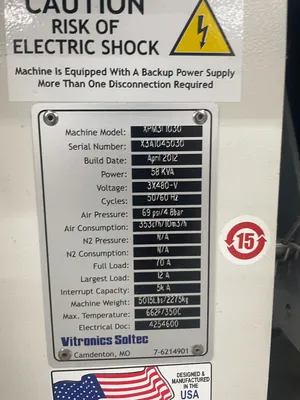

Serial Number: X3A1045030
Heating Zones: 10 Top / 10 Bottom
Cooling Zones: 2

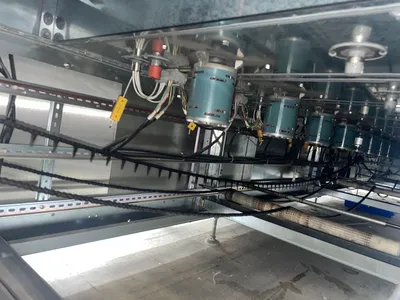

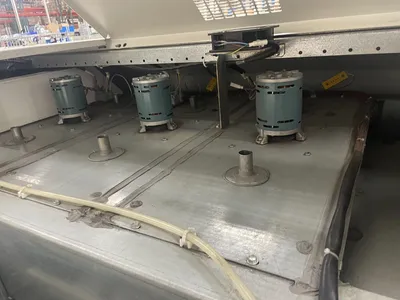

Heating Technology: Forced Hot Air Convection

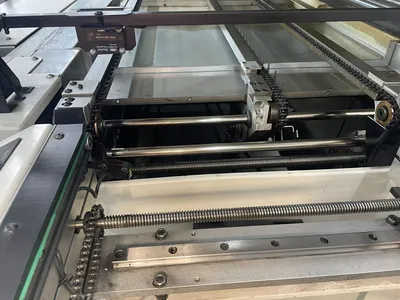

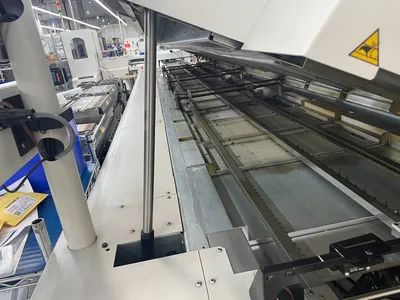

Conveyor Type: Edge Rail with Center Board Support
Maximum PCB Width: Up to 450 mm
Board Width Adjustment: Automatic
Conveyor Direction: Left to Right
Nitrogen Capability: Air Configuration (N₂ Not Installed)
SMEMA Compatible: Yes
Country of Manufacture: USA

*Complete Turnkey SMT Production Line Available*

This machine is available individually or as part of a complete SMT production line consisting of:
- (2) Panasonic SP-18-L Screen Printers with TCU
- Panasonic CM602-L High-Speed Modular Pick & Place Machine (2015, 12 + 12 Head Configuration)
- Panasonic CM602-L SMT Pick & Place Machine with Extension Conveyor (2012, 8 + 8 Head Configuration)
- Panasonic DT401 SMT Pick & Place Machine (2012, 3-Head Configuration with Tray)
- (2) Panasonic PanaCIM Pre-Setup Stations
- Vitronics Soltec XPM3i 1030 10-Zone Reflow Oven
- SMEMA-Compatible Board Handling Equipment

Individual machines or the complete production line are available for purchase.
